SubConn Ethernet Micro Circular – 9 Contacts

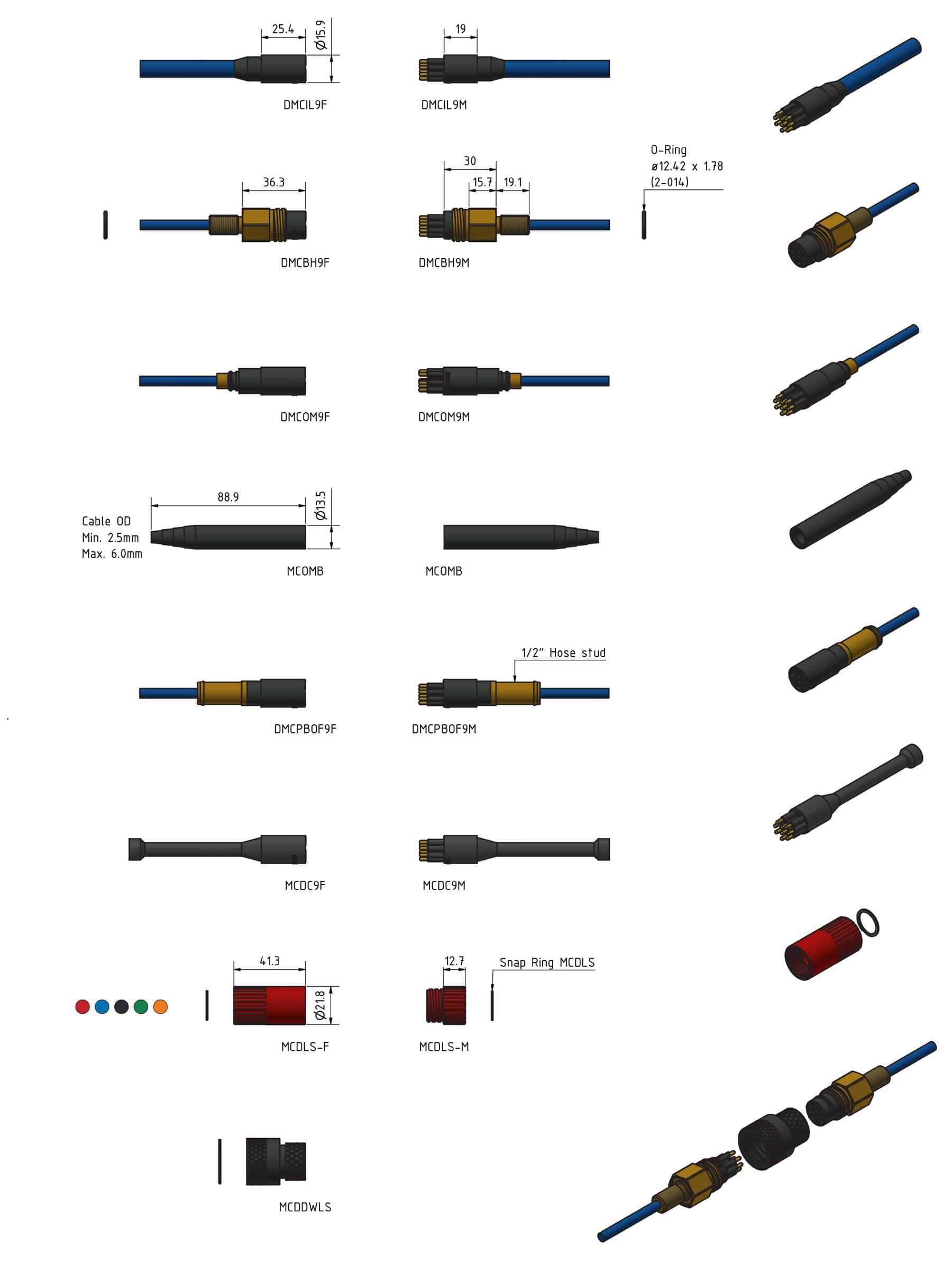

Drawing Information

Dimensions in mm (1 mm = 0.03937 inch)
Threads in inches (1 inch = 25.4 mm)

Connector Specifications

• Voltage rating: 250 V DC/AC rms
• Data rate: 1 Gbit/s (up to 50 m)
• Insulation resistance: > 200 MΩ
• Contact resistance: < 0.01 Ω Wet matings: > 500
• Temperature rating (water): – 4 to 60˚C, 25 to 140˚F
• Temperature rating (air): – 40 to 60˚C, – 40 to 140˚F
• Storage temperature rating: – 40 to 60˚C, – 40 to 140˚F
• Qualified pressure tested: 600 bar, 8,700 psi (open face)
• Depth rating PEEK: 300 bar, 4,350 psi

Material Specifications

• Connector body: Chloroprene rubber
• Bulkhead body: Brass, stainless steel, titanium, anodised aluminium
• Contacts: Female sockets in gold-plated brass UNS – C36000, Male contacts in gold-plated beryllium copper
• O-rings: Nitrile
• Locking sleeves: ABS or stainless steel
• Snap rings: Stainless steel AISI 302
• Inline cable (3.3 ft, 100 cm): PUR cable D/P4TP24#-A
• Bulkhead and PBOF leads (3.3 ft, 100 cm): CAT 5E patch cable incl. Screened RJ 45 connector incl. on the bulkhead (not installed)
• OM leads (3″), 7 cm: CAT 5E patch cable

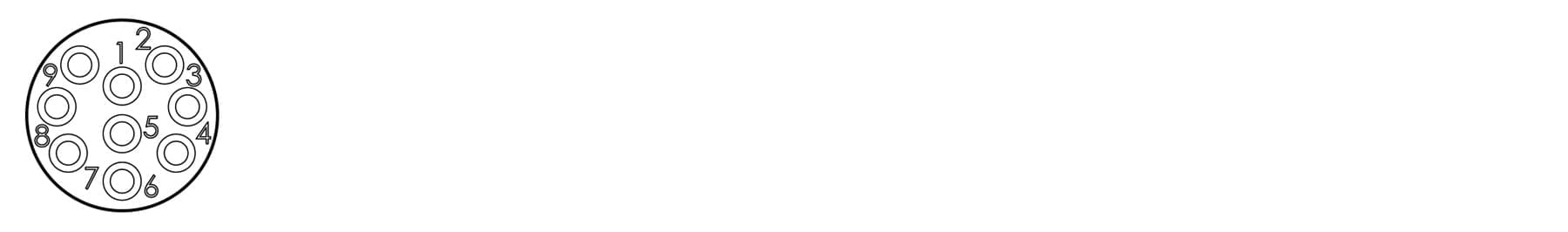

Face View (Male)

Inline Cable Color Code

1-2: Brown, Brown/white*
3-4: Blue, Blue/white*
5-6: Orange, Orange/white*
7-8: Green, Green/white*
9: Screen

* Twisted pairs
