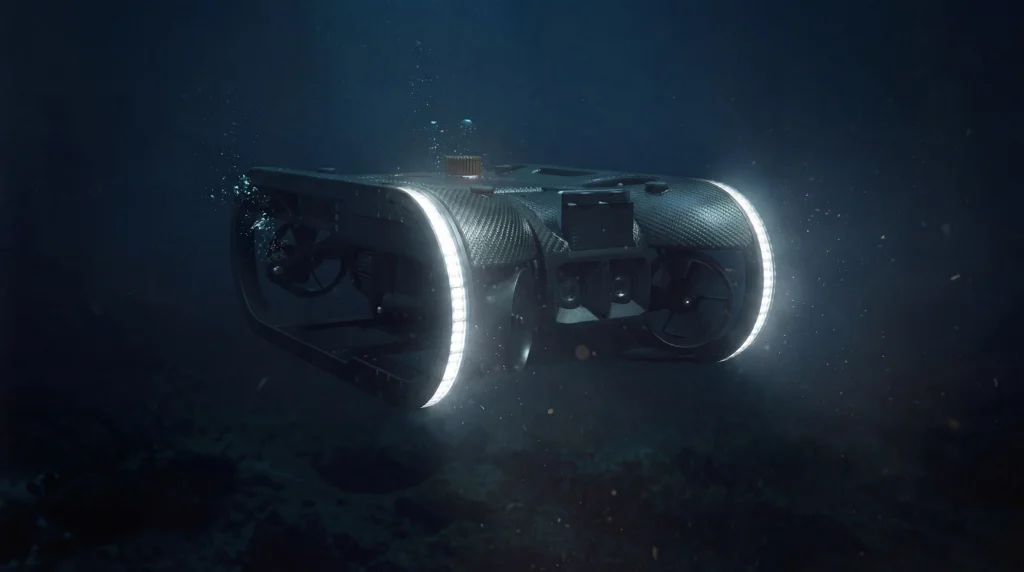

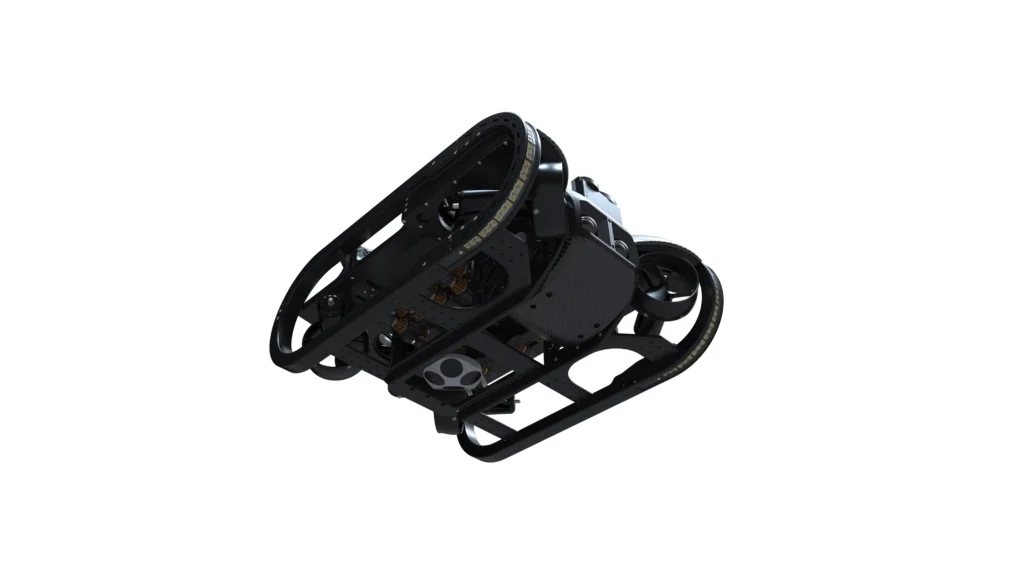

SPECTRA ROV
The SPECTRA ROV is a high-performance remotely operated vehicle engineered for demanding offshore Inspection, Repair, and Maintenance (IRM) operations. Designed for challenging subsea environments, SPECTRA delivers stable performance in currents up to 4 knots, a 1,000 m depth rating, and advanced perception capabilities for precise inspection and intervention tasks.
Built for efficiency in the field, the SPECTRA ROV features a modular architecture that supports rapid mobilization and servicing, helping reduce downtime and maximize operational uptime.
Performance & Imaging
The SPECTRA ROV integrates advanced sensing and imaging technologies to support accurate inspection and data collection. A dual 4K stereo camera system provides high-resolution video and imaging, while a powerful 300,000-lumen LED lighting system ensures clear visibility in low-light or deepwater conditions.
In addition, integrated 3D Sonar SLAM with photogrammetry enables real-time mapping, precise localization, and repeatable inspections. This allows operators to generate high-resolution 3D models and maintain consistent inspection paths over time.
Key Features
- Depth rated to 1,000 m (3,280 ft.)
- Stable operation in currents up to 4 knots
- 7-thruster configuration (4 vectored, 3 vertical)
- 3-knot lateral movement capability
- Dual 4K stereo camera system with 12 MP image capture
- 300,000 total lumens LED lighting with camera tracking
- 3D Sonar SLAM navigation and mapping
- Integrated 2D and 3D sonar with 180° rotation
- Rapid modular serviceability (under 30 minutes)
Designed for Offshore IRM
The SPECTRA ROV is purpose-built for offshore operations where reliability and efficiency are critical. Its robust construction, high thrust output, and advanced navigation capabilities make it ideal for inspection, maintenance, and intervention tasks across energy, infrastructure, and subsea asset environments. Furthermore, its modular design enables quick servicing and system adaptability, reducing operational delays and improving mission readiness.
Applications:
- Offshore oil & gas inspection and maintenance
- Subsea infrastructure inspection
- Renewable energy (offshore wind, cables)
- Pipeline and asset inspection
- Marine construction support
- Environmental and research surveys
Spec Highlights
General Specifications

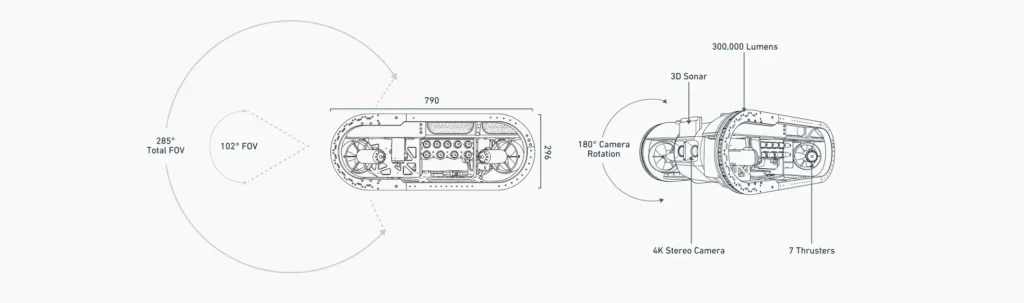

- Dimensions: 586 mm (W) × 296 mm (H) × 790 mm (L)
- Weight (in air): 38 kg (84 lbs)
- Frame: HDPE, stainless steel, buoyancy foam
- Depth Rating: 1,000 m (3,280 ft.)
- Operating Temperature: -10°C to 40°C (14°F to 104°F)
- Camera: Dual 4K video, 12 MP images
- Lighting: Dual 150,000 lumen LED arrays
- Sonar: 2D imaging + 3D sonar with 180° rotation
- Navigation: Real-time Sonar SLAM (with 3D sonar)
- Tether: 300 m fiber (expandable)
- Case: SKB iSeries
- Warranty: 1 year (extended options available)
Thrusters & Mobility
- Thrusters: 7 total (4 vectored, 3 vertical)
- Type: Brushless motors with quick-change propellers
- Thrust Force: 40 kg (88 lbs)
- Forward Speed: 4 knots
- Lateral Speed: 3 knots
Electrical System
- System Voltage: 48VDC nominal
- Accessory Power: 1000W @ 48V
- Communications: Gigabit Ethernet, RS485, RS232
- Topside Voltage: 100–260 VAC, 50–60Hz
- Max Power Draw: 7200W
Why Choose the SPECTRA ROV?
The SPECTRA ROV combines power, precision, and advanced perception technologies to deliver reliable performance in demanding offshore environments. With a high thrust capability, real-time 3D mapping, and modular serviceability, the SPECTRA ROV provides operators with the tools needed to perform efficient, repeatable, and data-driven subsea operations.
Contact Ocean Innovations to request a quote or learn more about the SPECTRA ROV.
