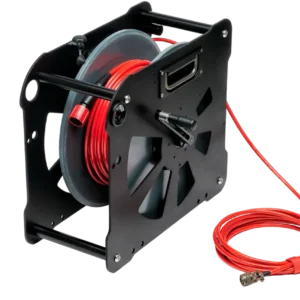

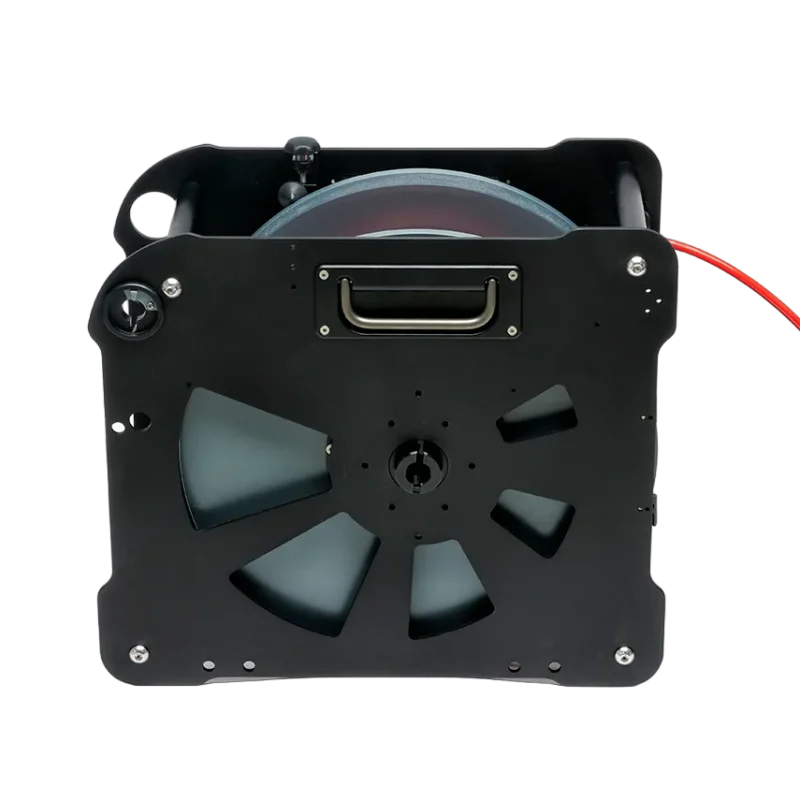

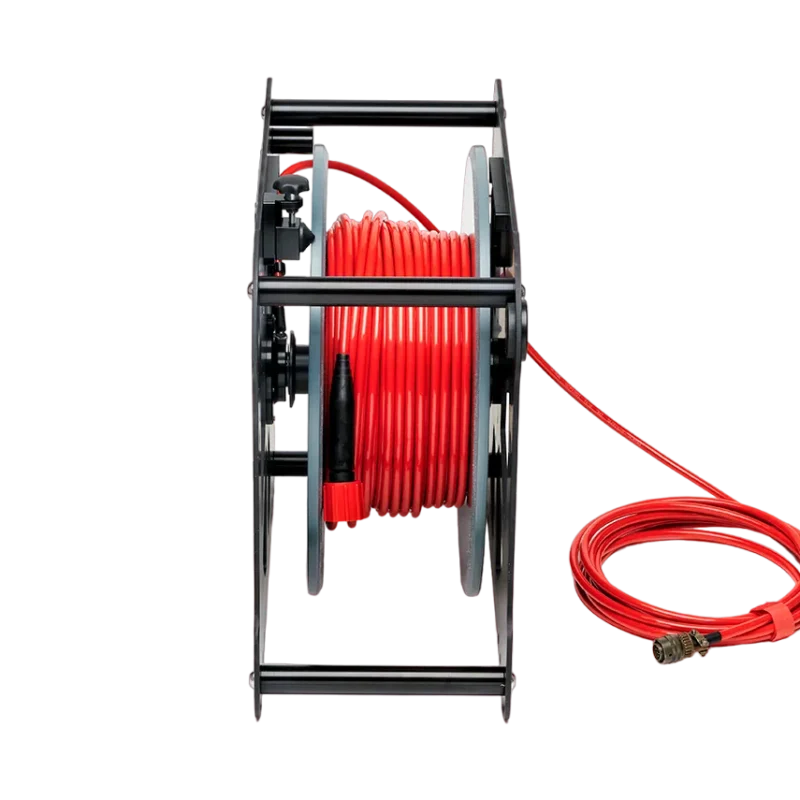

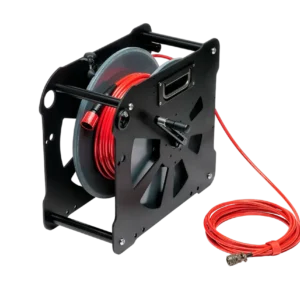

CROC Mini Tether Reel
The Reach Systems CROC Mini Tether Reel is a compact, portable cable-management solution originally designed for deploying ROVs and sensors from Autonomous Surface Vessels (ASVs). It is well suited for portable and remote applications using a small-diameter tether.
In its basic configuration, the CROC Mini provides manual payout and retrieval. A Smart Winch option adds an embedded controller and DC motor, allowing the reel to be operated remotely over wireless networks or configured for semi-autonomous payout and retrieval functions.
Key Features
- Compact, portable tether reel
- Designed for ROVs, sensors, and other remotely operated equipment
- Suitable for ASVs and remote applications
- Manual payout and retrieval in the basic configuration
- Smart Winch option with embedded controller and DC motor
- Remote operation over wireless networks
- Semi-autonomous payout and retrieval capability
- 6061-T6 aluminum and acetal construction
- Adjustable level-wind option
- Motorized payout and retrieval option
- Deployment arm and sheave option
- Integrated cable counter available
- OEM and white-label branding available upon request
Specifications
- Construction: 6061-T6 aluminum acetal
- Weight: 9.1 kg / 20 lb without
- Slip Ring: 8-conductor, 28 AWG, 240 VDC/AC
- Slip-Ring Options: Higher voltage, additional conductors, fiber optic, and other configurations available
Cable Capacity
- 5 mm cable: up to 300 m / 1,000 ft
- 8 mm cable: up to 100 m / 330 ft
- 10 mm cable: up to 50 m / 165 ft
Documentation
Contact Ocean Innovations for pricing, availability, tether capacity, Smart Winch options, level-wind, slip-ring, or other configuration requirements.
