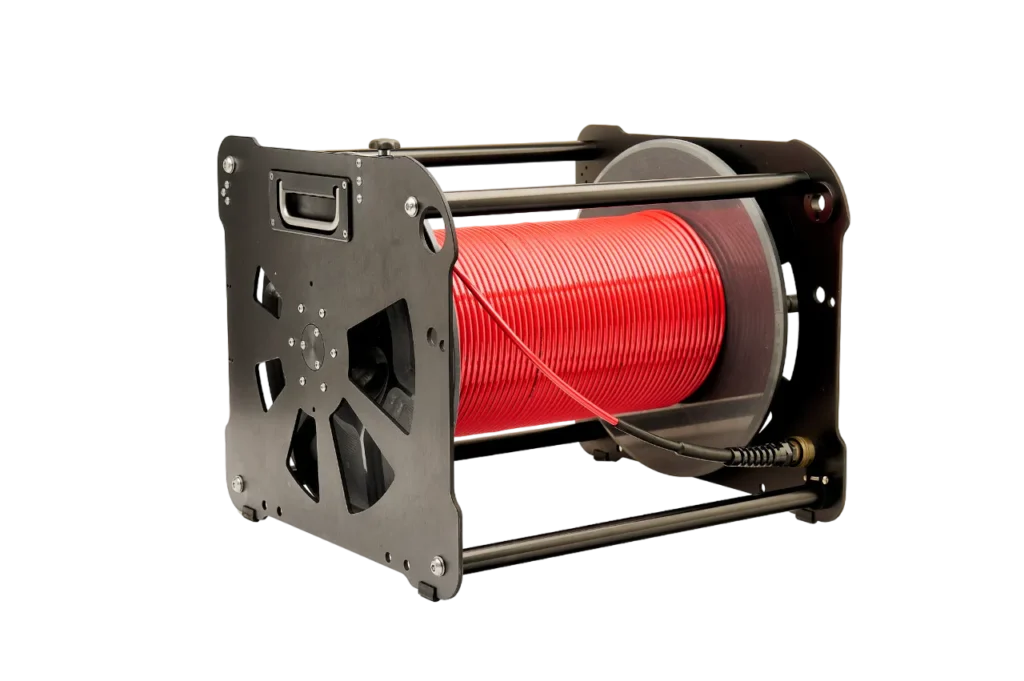

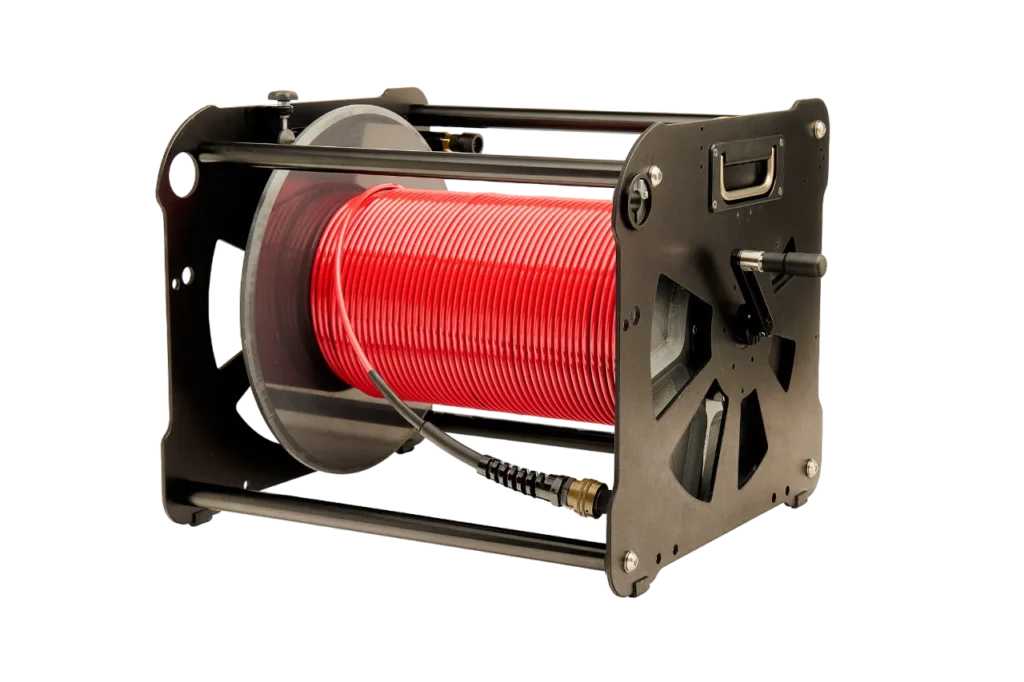

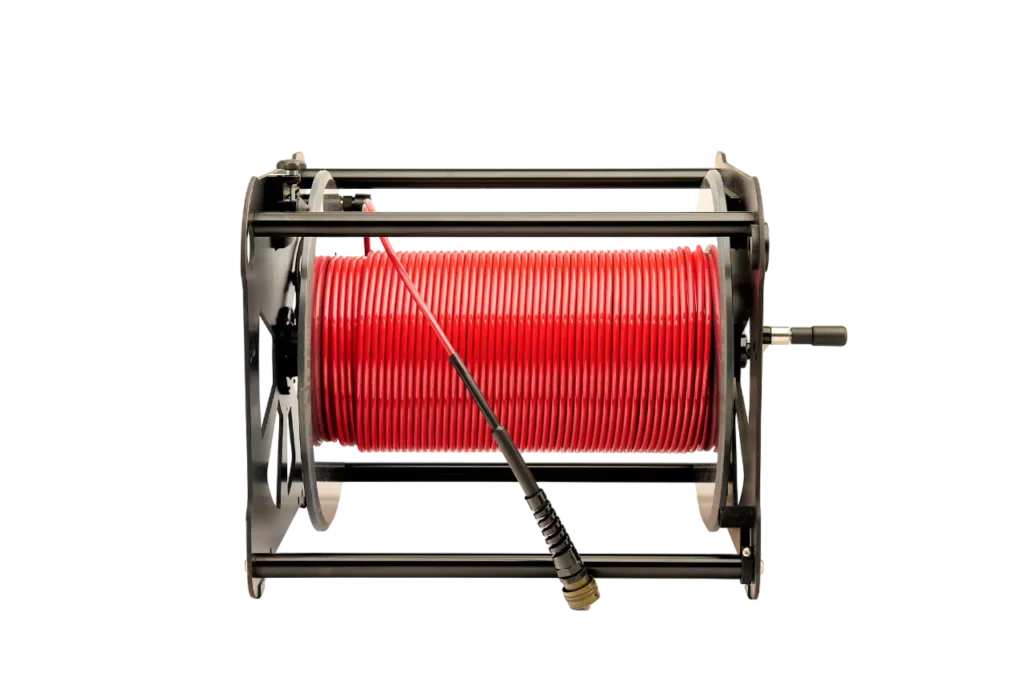

CROC Tether Reel
The Reach Systems CROC Tether Reel is a durable, compact cable-management system designed for ROVs, robotic crawlers, sonar systems, sensors, and other remotely operated equipment.
The standard CROC provides substantially greater tether capacity than the CROC Mini while maintaining a portable, easy-to-use design. It can accommodate up to 1,300 m of 5 mm tether, with additional capacities available for larger cable diameters.
A range of configuration options is available, including motorized payout and retrieval, adjustable level wind, deployment arm and sheave, and an integrated cable counter. The CROC can also be upgraded with a Smart Winch option for remote or autonomous control.
Key Features
- Durable, compact tether reel
- Designed for ROVs, robotic crawlers, sonar systems, sensors, and other remote systems
- Cable capacity up to 1,300 m, depending on tether diameter
- Manual or motorized payout and retrieval options
- Smart Winch option available for remote or autonomous control
- Adjustable level-wind option
- Deployment arm and sheave option
- Integrated cable counter available
- 6061-T6 aluminum and acetal construction
- Copper, fiber-optic, and other slip-ring configurations available
- OEM and white-label branding available upon request
Specifications
- Model: 008-440-00
- Construction: 6061-T6 aluminum and acetal
- Weight: 12.3 kg / 27 lb without cable or level wind
- Slip Ring: 8-conductor, 28 AWG, 240 VDC/AC
- Slip-Ring Options: Higher voltage, additional conductors, fiber optic, and other configurations available
Cable Capacity
- 5 mm cable: up to 1,300 m / 4,200 ft
- 8 mm cable: up to 500 m / 1,650 ft
- 10 mm cable: up to 300 m / 1,000 ft
Documentation
Contact Ocean Innovations for pricing, availability, tether capacity, Smart Winch options, level-wind, slip-ring, or other configuration requirements.
