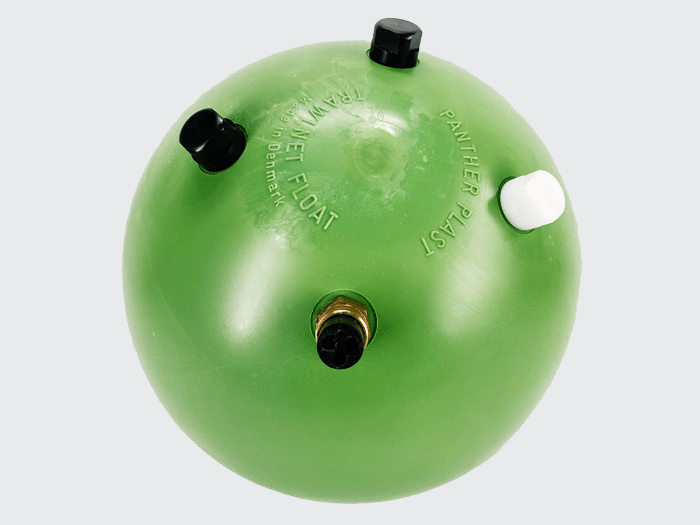

10″ Polyamide Instrument Sphere, 1 km
The Global Ocean Design 10″ Polyamide Instrument Sphere, 1 km (IFS-141) is rated to 1,000 meters and provides an alternative to conventional pressure cases by combining instrument housing and buoyancy in a single sphere.
The IFS-141 comes standard with an O-ring face seal, a Global Ocean Design self-sealing purge port, three 7/16-20 tapped and spotfaced connector ports with blanking plugs, and an Interior Mounting Ring and Plate installed. Optional Exterior Mounting and Centering Rings are also available.
Key Features
- Rated to 1,000 m
- Provides both instrument housing and buoyancy
- Polyamide construction is inert in seawater and will not corrode
- Shock resistant
- Transparent to Wi-Fi and other RF signals
- O-ring face seal
- Includes Global Ocean Design self-sealing purge port
- Three 7/16-20 tapped and spotfaced connector ports with blanking plugs
- Interior Mounting Ring and Plate installed
- Optional Exterior Mounting and Centering Rings available
Documentation
The Global Ocean Design 10″ Polyamide Instrument Sphere, 1 km (IFS-141) combines pressure housing and buoyancy in a corrosion-resistant polyamide sphere for subsea instrumentation. Contact Ocean Innovations for pricing, availability, mounting options, compatible accessories, or technical assistance.
Note: The IFS-141 requires a Deck Purge Box or Purge System Connector, sold separately. Additional Interior Mounting Rings and Plates are also available separately.
