Magnetically Activated Switch for End Caps
The Global Ocean Design Magnetically Activated Switch for End Caps (MAS-147) provides a convenient way to turn a system on or off before deployment or after recovery. An SPDT reed switch with normally open, common, and normally closed contacts is housed inside the switch body.

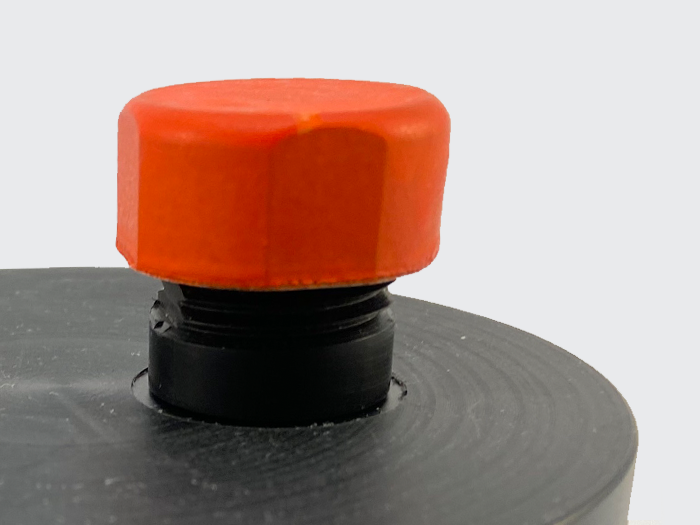

A bright orange screw-on cap contains the neodymium magnet used to operate the switch. The magnetic cap is removed before deployment to activate the switch.
The MAS-147 is available with Delrin, 6061-T6 aluminum, or titanium 6-4 switch bodies, allowing the material and pressure rating to be selected for the application.
Key Features
- Magnetically activated switching for subsea systems
- SPDT reed switch with normally open, common, and normally closed contacts
- Bright orange screw-on cap contains the neodymium activation magnet
- Switch bodies available in Delrin, 6061-T6 aluminum, and titanium 6-4
- Contacts rated for 5 watts DC
- Higher-current loads require a MOSFET, solid-state relay, or relay for power control
- 6061-T6 aluminum and titanium 6-4 versions tested to 10,000 psi
- Delrin version tested to 3,000 psi
- Titanium 6-4 testing to 18,000 psi available at additional cost
- Designed for use with flat end caps or polyamide spheres
Applications
- Subsea pressure housings with flat end caps
- Polyamide sphere instrumentation
- Oceanographic instrumentation
- Subsea electronics
- Marine research equipment
Documentation
The Global Ocean Design Magnetically Activated Switch for End Caps (MAS-147) provides magnetic control of subsea equipment with multiple body-material and pressure-rating options. Contact Ocean Innovations for pricing, availability, material selection, system compatibility, or technical assistance.
Note: The magnetic activation cap is removed before deployment.
Pressure Testing: 6061-T6 aluminum and titanium 6-4 versions are tested to 10,000 psi, while the Delrin version is tested to 3,000 psi. Titanium 6-4 testing to 18,000 psi is available at an additional cost.
Contact Ocean Innovations at (858) 454-4044 or brock@o-vations.com
