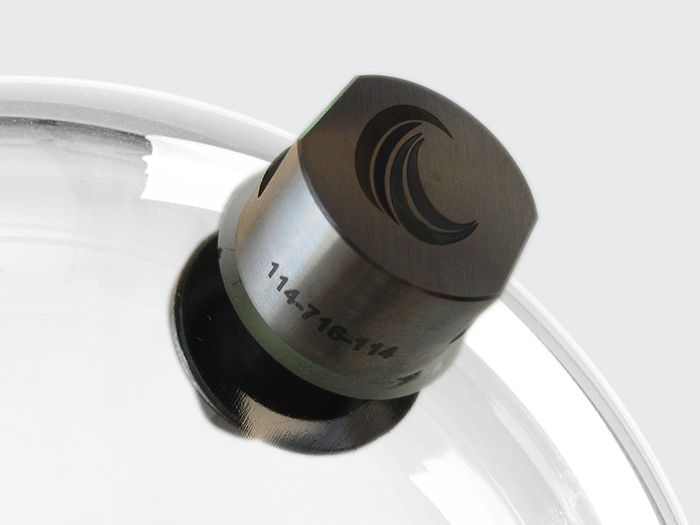

Blanking Plugs for Glass Spheres
The Global Ocean Design Blanking Plug for Glass Spheres (IFS-114) provides a way to seal an unused pre-drilled connector port while preserving the ability to add an underwater connector later.
The IFS-114 is designed for a 9/16-inch diameter clearance hole with a 1-1/8-inch ground spotface. This allows a glass sphere to be configured with an additional port and kept sealed with the blanking plug until the connection is needed.
When expansion is required, the pre-drilled port can accommodate BH or MCBH bulkhead connectors with 7/16-20 or 1/2-20 threads using the Global Ocean Design MCBH Adapter for Glass Spheres (IFS-180), sold separately.
Key Features
- Provides system expansion capability
- Seals unused pre-drilled ports in glass spheres
- Designed for 9/16-inch clearance holes
- Uses a 1-1/8-inch ground spotface
- Allows future installation of compatible BH or MCBH bulkhead connectors
- Compatible with the IFS-180 MCBH Adapter for Glass Spheres for supported connector installations
Datasheet
Contact Ocean Innovations for pricing, availability, compatibility, or technical assistance.
Contact Ocean Innovations at (858) 454-4044 or brock@o-vations.com
