Interior Mounting Ring and Plate

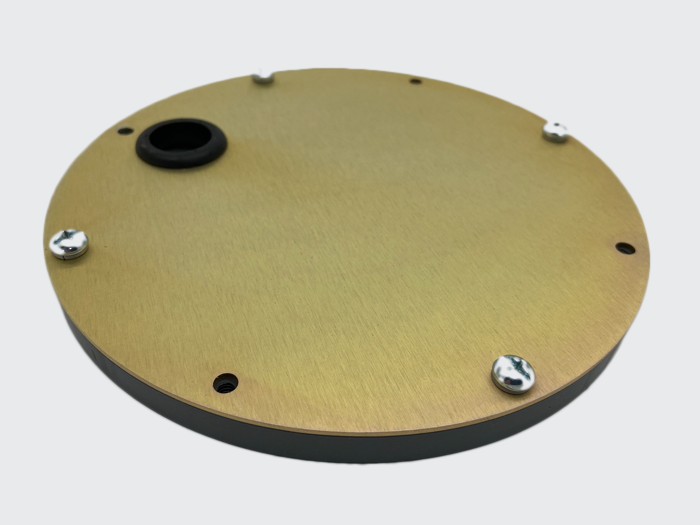

The Global Ocean Design Interior Mounting Ring and Plate (IFS-104/105-10 and IFS-104/105-17) provide a secure and convenient mounting solution for electronics and instrumentation inside compatible spheres.
The PVC mounting ring is bonded to the interior surface of the sphere, creating a compliant joint. The aluminum mounting plate attaches to the ring with fasteners and provides sufficient thickness for rivet nuts, through bolts, and grommets.
Configurations are available for 10-inch polyamide spheres and 10-inch and 17-inch glass spheres.
Key Features
- Secure mounting plate for electronics and instrumentation
- PVC mounting ring bonded to the interior sphere surface
- Aluminum mounting plate
- Suitable for rivet nuts, through bolts, and grommets
- Connector ports positioned below the plate for short wire runs
- Available for 10-inch polyamide spheres
- Available for 10-inch and 17-inch glass spheres
Datasheets
- IFS-104/105-10 Interior Mounting Ring and Plate Datasheet
- IFS-104/105-17 Interior Mounting Ring and Plate Datasheet
Contact Ocean Innovations for pricing, availability, compatibility, or technical assistance.
