Nanolander

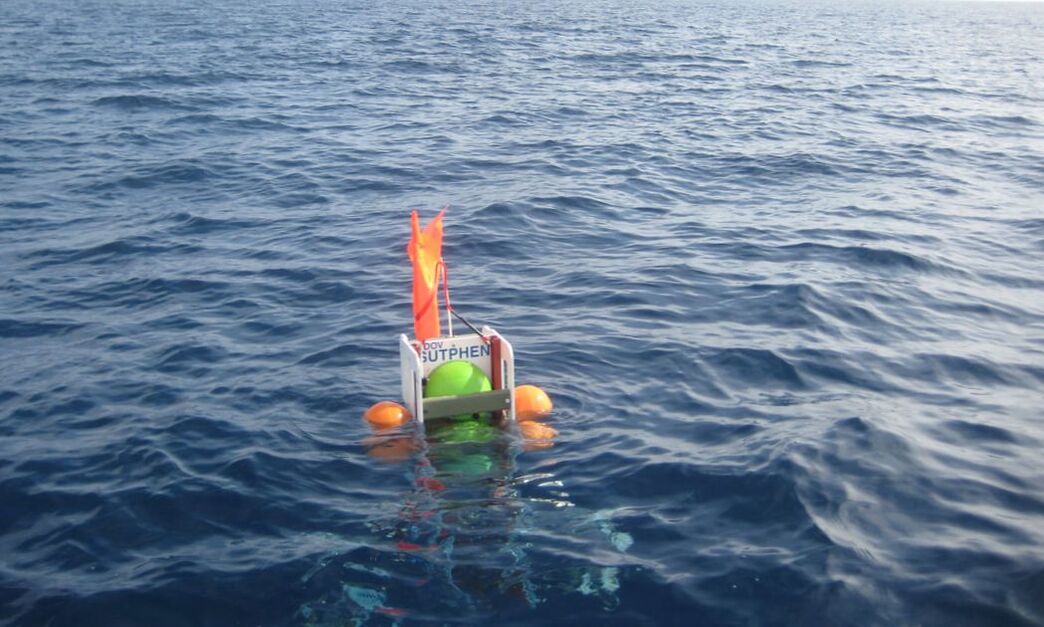

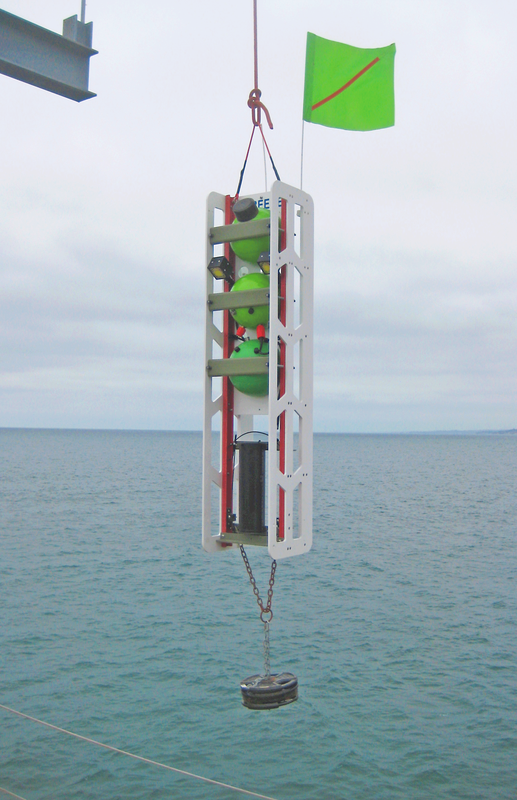

The Global Ocean Design Nanolander (OL-161) is a configurable ocean lander platform designed for deploying customer-selected sensors and samplers to the seafloor. Available configurations are rated for depths of 1 km, 2 km, or 10 km.

The standard Nanolander supports a maximum payload water weight of 22 lbs. Supplemental buoyancy is available to increase the maximum payload water weight to approximately 66 lbs. The Nanolander also provides a dedicated payload bay for integrating mission-specific equipment, with acoustic and timer release options available.

Key Features

• Configurable ocean lander platform
• Overall size: 62.75 in. H × 13.75 in. W × 13.5 in. D
• Maximum payload water weight: 22 lbs
• Supplemental buoyancy available to increase maximum payload water weight to approximately 66 lbs
• Payload bay size: 20 in. H × 11 in. W × 13 in. D
• Available depth ratings: 1 km, 2 km, or 10 km
• Acoustic release available
• Timer release available
• Configured for customer-selected sensors and samplers

Documentation

• Nanolander Mechanical Drawings

Contact Ocean Innovations for pricing, availability, depth-rating options, supplemental buoyancy, release configurations, payload integration, or technical assistance.

Note: All sensors and samplers are selected and installed by the customer.

Contact Ocean Innovations at (858) 454-4044 or brock@o-vations.com
