Burnwires

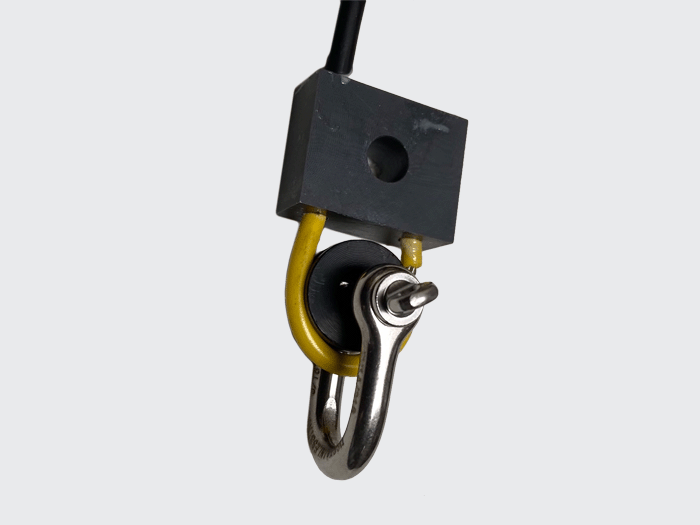

Global Ocean Design Burnwires (REL-238) are designed for seawater release applications, including releasing anchor weights, closing Niskin bottles or baited traps, releasing floats or drop arms, and closing valves.
The REL-238 holds a static load of up to 250 lbs until a 10–24 VDC voltage is applied. Using seawater as a conductor, the burnwire galvanically corrodes to initiate release. Typical release time is approximately 6–15 minutes, depending largely on environmental conditions, particularly water temperature.
Each Burnwire includes a SubConn ILM1M pigtail with locking sleeve and 316 stainless steel shackle for use with the Global Ocean Design Burnwire Mount, sold separately.
Key Features
- Rated for static loads up to 250 lbs
- Operates with 10–24 VDC
- Typical release time of 6–15 minutes
- Uses seawater as a conductor for galvanic release
- Side-load and torque tolerant
- Compact design
- No moving parts
- Proven to operate at any depth
- Individually load tested at the factory
- Includes 316 stainless steel shackle
- Includes SubConn ILM1M pigtail with locking sleeve
- Compatible with the Global Ocean Design Burnwire Mount (sold separately)
Applications
- Anchor weight release
- Niskin bottle closure
- Baited trap closure
- Float release
- Drop arm release
- Valve closure
- Subsea release systems
Documentation
Global Ocean Design Burnwires (REL-238) provide a compact, mechanically simple solution for seawater release applications with static loads up to 250 lbs. Contact Ocean Innovations for pricing, availability, Burnwire Mount compatibility, or technical assistance.
Note: Burnwires are recommended for use with the Global Ocean Design Burnwire Mount and are for use in seawater only.
Replacement Program: Spent Burnwires may be returned with the connector for credit toward a replacement.
Contact Ocean Innovations at (858) 454-4044 or brock@o-vations.com
