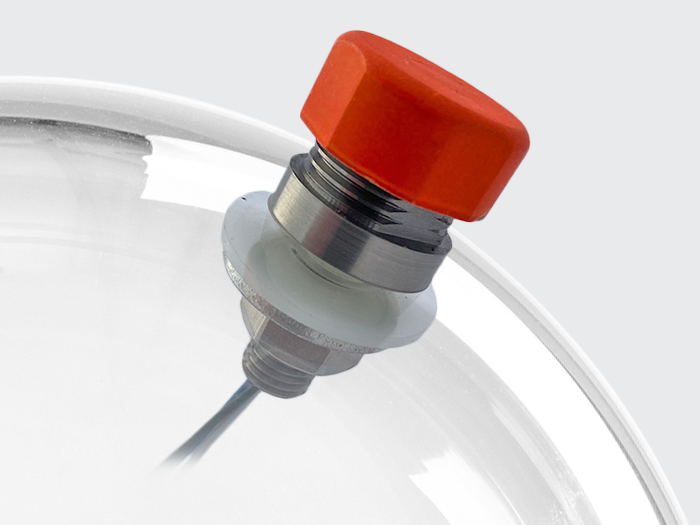

Magnetically Activated Switch for Glass Spheres
The Global Ocean Design Magnetically Activated Switch for Glass Spheres (MAS-151) provides a simple way to turn a system on or off before deployment without opening the pressure housing. A neodymium magnet is used to activate the internal switch, allowing equipment inside the glass sphere to be controlled externally.
A normally open-common-normally closed (SPDT) reed switch is housed inside the Ti 6-4 titanium body. The bright orange screw-on cap contains the activating magnet and is used to operate the switch before deployment.
Key Features
- Magnetically activated switching for equipment housed in glass spheres
- Uses a neodymium magnet to turn a system on or off before deployment
- Normally open-common-normally closed (SPDT) reed switch
- Ti 6-4 titanium body
- Contacts rated for 5 watts DC
- Higher-current loads require a MOSFET, solid-state relay, or relay for power control
- Pressure tested to 10,000 psi with certification
- Testing to 18,000 psi available at additional cost
- Bright orange screw-on magnetic activation cap
Documentation
The Global Ocean Design Magnetically Activated Switch for Glass Spheres (MAS-151) provides convenient external control of equipment inside subsea glass spheres before deployment. Contact Ocean Innovations for pricing, availability, system compatibility, or technical assistance.
Note: The magnetic activation cap is removed before deployment.
Pressure Testing: Standard units are tested to 10,000 psi with certification. Testing to 18,000 psi is available at additional cost.
Contact Ocean Innovations at (858) 454-4044 or brock@o-vations.com
